MINI PC MINIS FORUM UM760 Slim Ryzen 5 7640HS Barebone

MINISFORUM UM760 Slim Ryzen 5 7640HS Mini PC Barebone

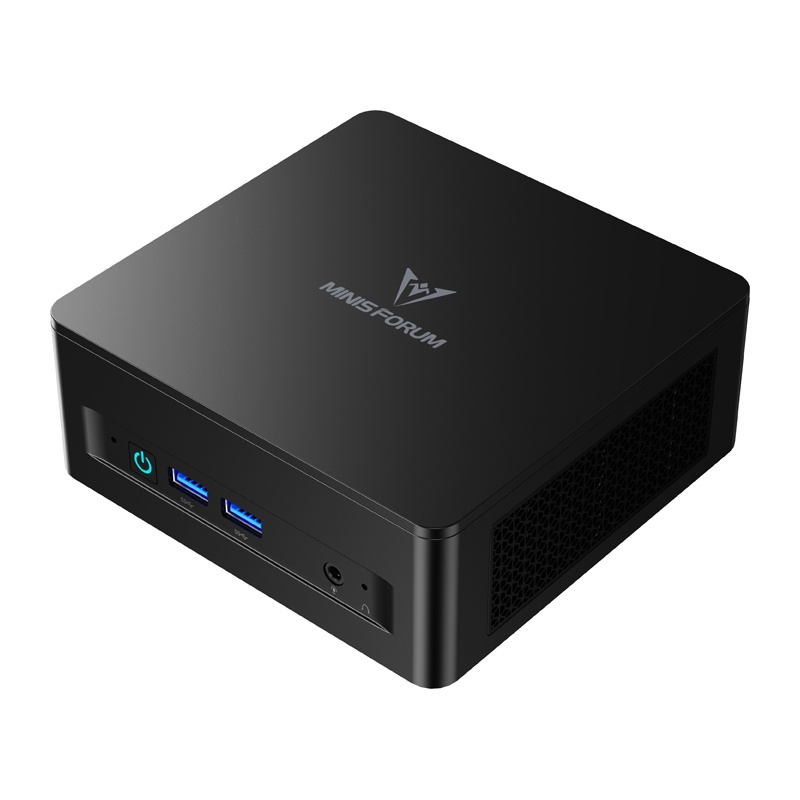

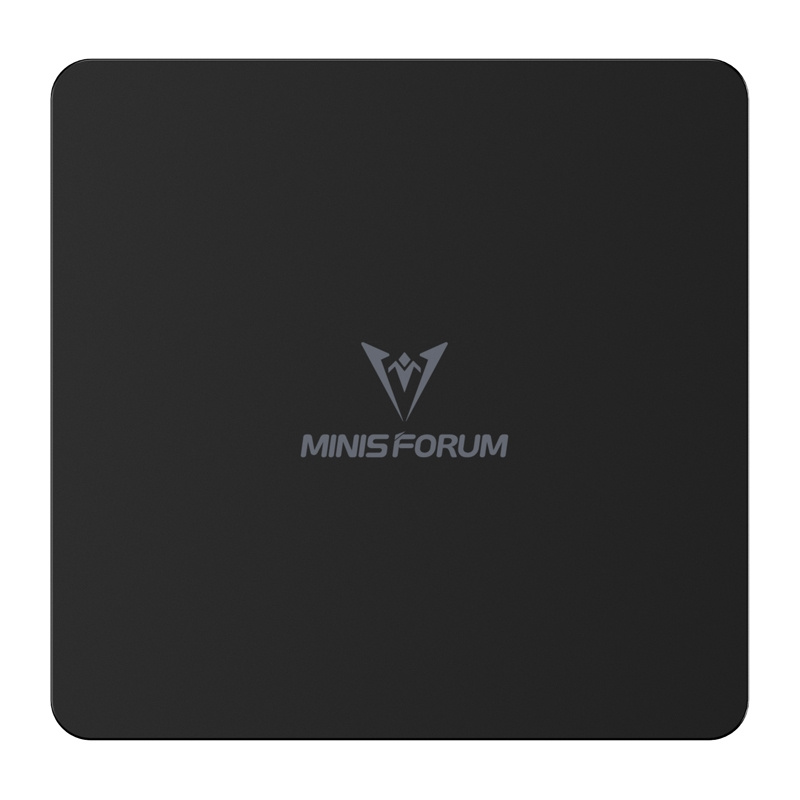

The MINISFORUM UM760 Slim is a modern mini PC that combines high performance with an exceptionally compact chassis. The model is equipped with an AMD Ryzen™ 5 7640HS processor and integrated AMD Radeon™ 760M graphics, making it ideal for office work, programming, photo editing, video editing and everyday entertainment. The barebone version offers you the freedom to choose your RAM and SSDs, allowing you to customize the configuration according to your specific needs.

Modern AMD platform

At the heart of the computer is the AMD Ryzen™ 5 7640HS processor, which offers reliable performance in a variety of applications. It is supported by AMD Radeon™ 760M integrated graphics. Users have access to two SODIMM slots for Dual Channel DDR5 RAM clocked at up to 5600 MHz, allowing the installation of up to 96 GB of memory. Two M.2 2280 slots are dedicated to PCIe 4.0 SSDs, allowing storage expansion up to 4 TB.

Advanced and quiet cooling

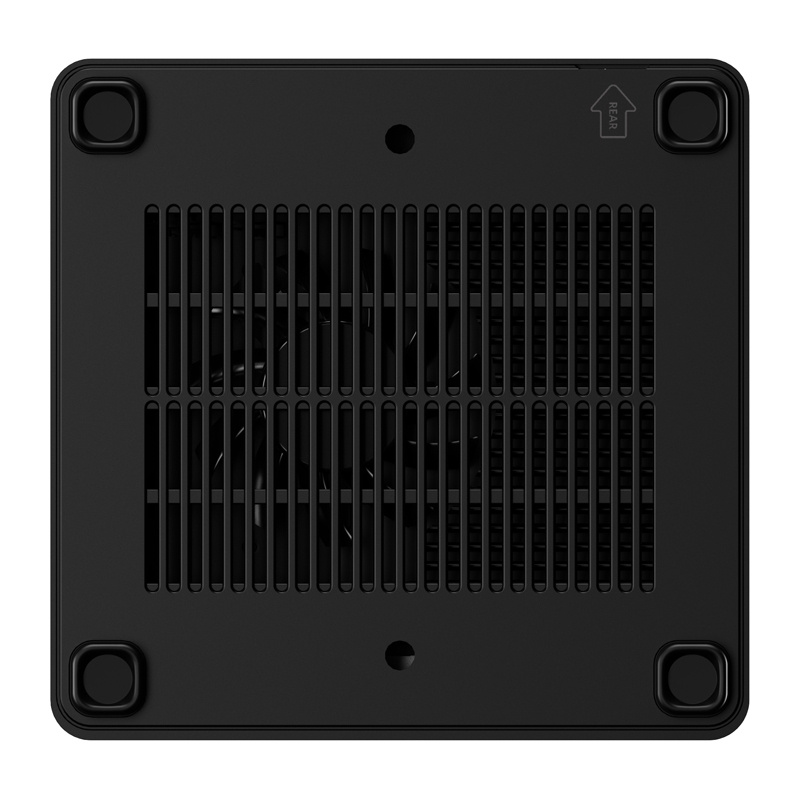

The UM760 Slim uses an advanced cooling system with phase change technology and three heat pipes, which effectively dissipates heat and maintains a stable TDP of 60 W. As a result, the computer maintains high performance even under prolonged loads. Despite the high computing power, the noise level in Performance Mode remains below 35 dB, ensuring comfortable and quiet operation.

Fast network connectivity

The computer is equipped with a 2.5 GbE LAN port, which provides a fast and stable wired network connection. Wireless communication is managed by Wi-Fi 6E and Bluetooth 5.3, allowing for the convenient connection of modern accessories. The USB4 port with a bandwidth of up to 40 Gbps not only allows super fast transfers of large files, but also supports DisplayPort Alt Mode and Power Delivery in the 65-100W range.

Work on three monitors at the same time

The MINISFORUM UM760 Slim allows you to connect three monitors at the same time through HDMI 2.1, DisplayPort 1.4 and USB4 ports. This configuration significantly expands your workspace and makes it easier to work with multiple applications at the same time. This is especially useful for data analysis, programming, video editing, and everyday office work.

Compact size, large selection of ports

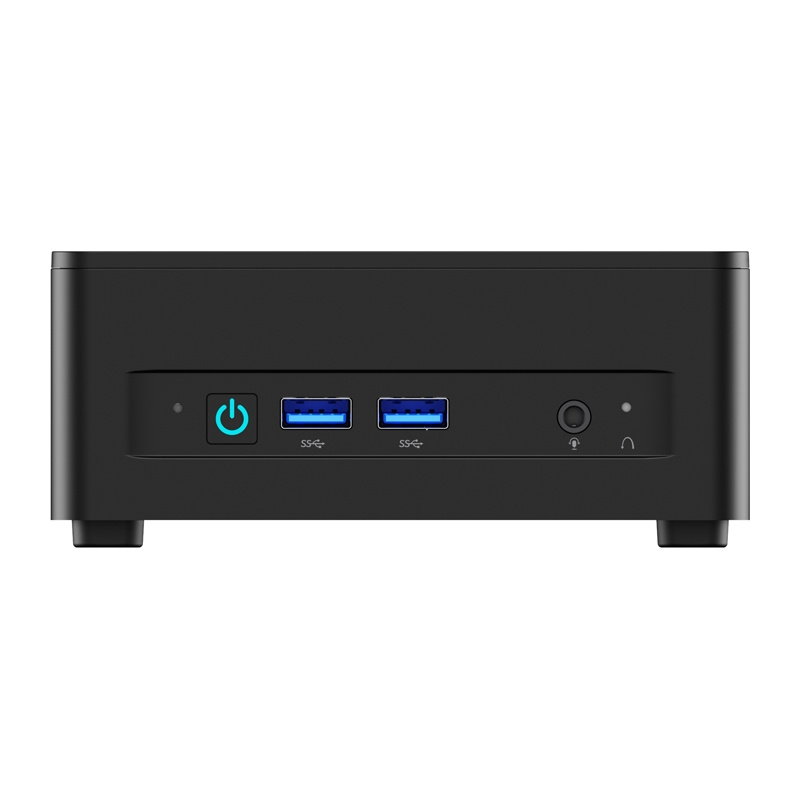

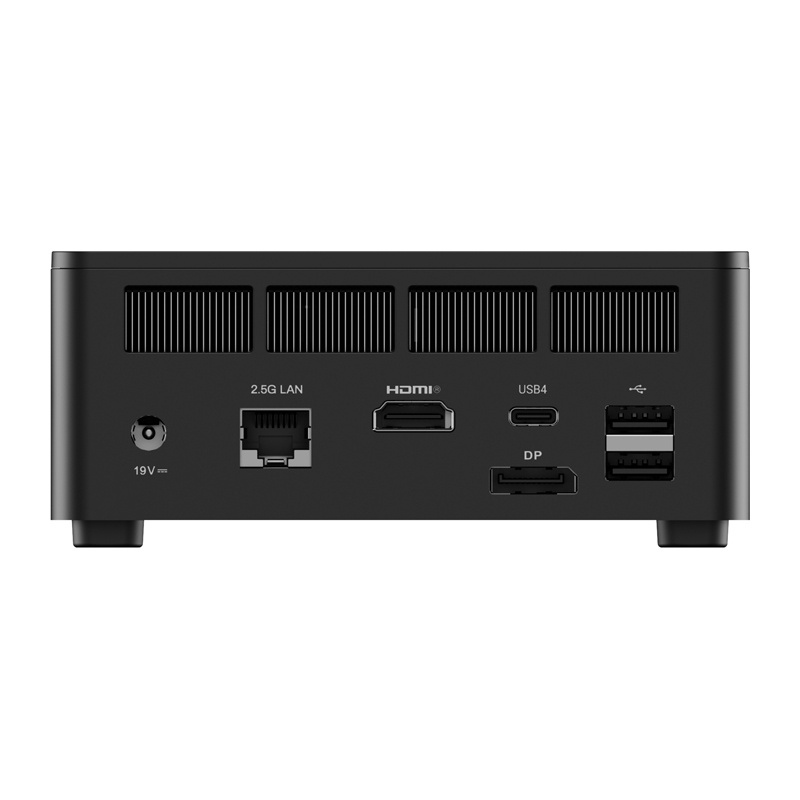

With dimensions of 13 × 12.6 × 5 cm and a weight of approximately 671 g, the case takes up very little space on your desk. The front panel features two USB 3.2 Gen2 Type-A ports, a 3.5 mm audio jack, and a Clear CMOS button. The rear panel is equipped with a 2.5 G RJ45 port, HDMI 2.1, DisplayPort 1.4, USB4, and two USB 2.0 ports. The included VESA mount allows for convenient computer mounting behind a monitor, helping to keep your workspace tidy.

Compatible with Windows 11

The model is compatible with Windows 11 (not included), which offers a modern interface and support for AI-based features such as Microsoft Copilot. Once RAM and SSD are added, the computer can be quickly set up for work, study, or entertainment.

inclusive

• Mini PC
• Power supply
• Power cable
• HDMI cable
• VESA support
• User manual
