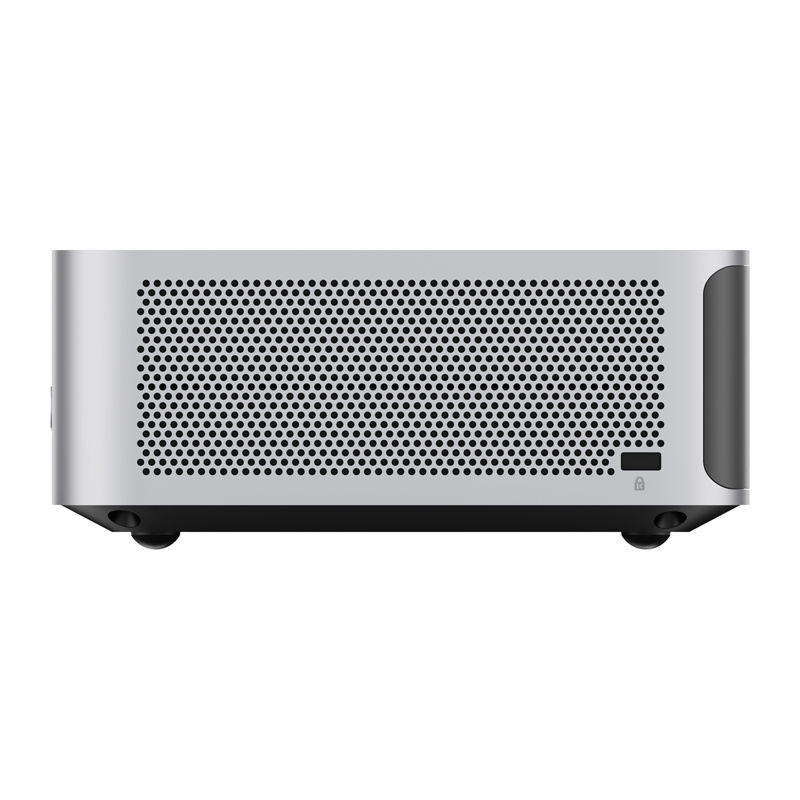

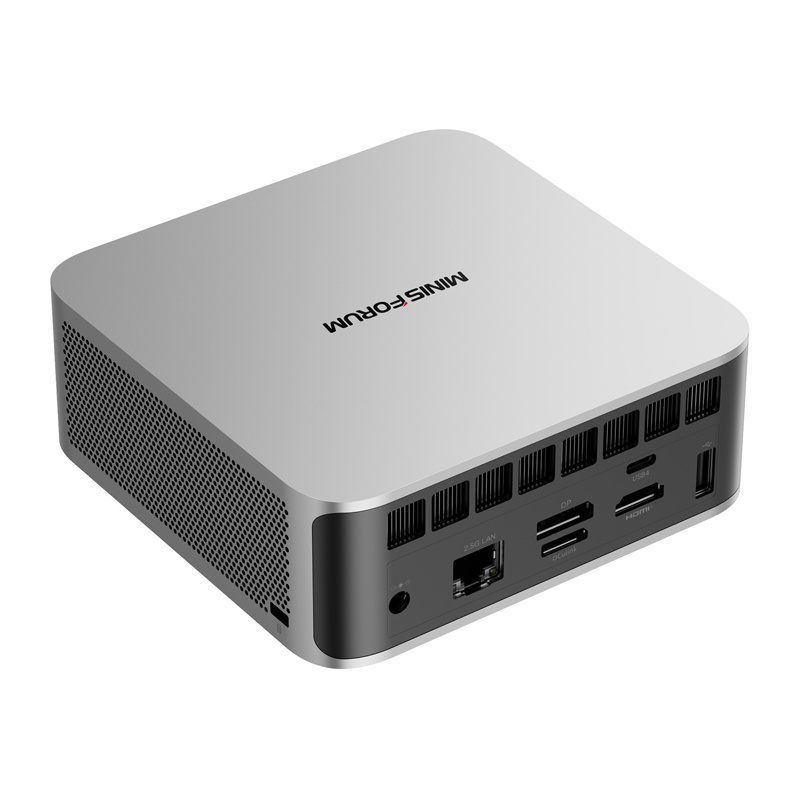

Mini-PC Minis Forum M1 Pro-125H Intel Core Ultra 5 125H Barebone

Mini-PC Minis Forum M1 Pro-125H barebone with Intel Core Ultra 5 125H

The MINIS FORUM M1 Pro-125H is equipped with a 14-core, 18-thread Intel Core™ Ultra 5 125H processor, integrated Intel Arc™ graphics. It supports up to 128 GB of 5600 MHz DDR5 RAM and two high-speed PCIe 4.0 NVMe SSDs (up to 4 TB). The set of ports includes 2 USB4, HDMI 2.1, DP 1.4, OcuLink (for eGPU), 2.5G LAN, Wi-Fi 7 and Bluetooth 5.4. The computer is compact (128x126x52 mm) and lightweight (600 g), ideal for desktop or VESA mounting.

AI Performance - Intel Core™ Ultra 5 125H

The M1 Pro-125H is equipped with an Intel Core™ Ultra 5 125H processor with 14 cores and 18 threads. With a frequency of up to 4.5 GHz and advanced AI support, this mini PC easily handles multitasking, video editing, data work, virtualization and gaming. It reaches 14,071 points in Cinebench R23 (Multi-Core).

Support for up to 128 GB DDR5 RAM and 4 TB SSD

The MINIS FORUM M1 Pro supports dual-channel DDR5 RAM up to 5600 MHz and 128 GB, unique in this category. Two M.2 PCIe 4.0 slots allow storage expansion of up to 4 TB with RAID 0/1 support for instant data access and increased security.

Multi-Monitor Connectivity and GPU Expansion

With HDMI 2.1, DP 1.4 and two USB4 ports, the M1 Pro supports up to 4 4K (or 8K) displays simultaneously, ideal for professionals. The OcuLink port allows you to connect an external GPU (eGPU), turning the mini PC into a powerful workstation or gaming station.

Reliable and Fast Connectivity

The M1 Pro integrates the highest performing standards: Wi-Fi 7 (up to 5.8 Gbps), Bluetooth 5.4 and 2.5G Ethernet, ensuring lightning-fast data transfers, smooth video conferencing and a stable network connection.

Advanced Cooling and Quiet Operation

A dual fan system and pure copper heatpipe ensure efficient cooling. The temperatures remain below 86°C even under load, with a maximum noise level of 45 dB for comfortable and stable operation.

Clear Audio

The integrated sound card (YH-SP6740-01) with active noise cancellation ensures clear audio for meetings and recordings. Connecting external audio devices via USB provides additional flexibility for multimedia work.
