MINISFORUM MS-02U-235HX: Barebone Mini PC Workstation with Intel Core Ultra 5 235HX for AI performance and professional expandability

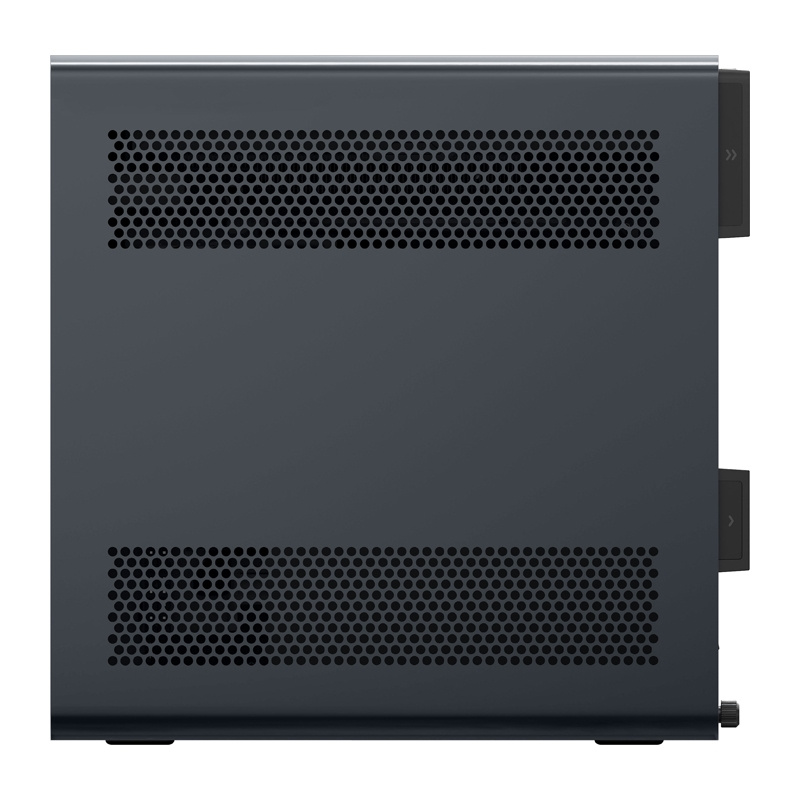

Discover the MINISFORUM MS-02 Ultra, an advanced mini PC workstation from the Station Mini series that combines exceptional performance, wide expandability and professional network connectivity in a compact chassis (221.5 × 97 × 225 mm). Designed for demanding applications such as virtualization, data analysis, large scale project management, content creation and advanced IT environments. The barebone version, without RAM or storage, allows you to customize the components according to your specific needs.

Intel Core Ultra 5 235HX: Built-in AI power

The heart of this workstation is the Intel Core Ultra 5 235HX processor, with 14 cores (6 Performance and 8 Efficient) and a Turbo frequency of up to 5.1 GHz. With 24 MB of Intel Smart Cache, it offers superior performance in both single-threaded applications and intensive multitasking. Intel integrated graphics (up to 1.8 GHz) and the Intel AI Boost Engine (up to 13 TOPS) enhance capabilities for modern AI-based applications.

Memory and Storage Expansion: Up to 256 GB RAM and 16 TB SSD

The MS-02 Ultra has four DDR5 SO-DIMM slots for up to 256 GB of RAM (up to 4800 MT/s), ensuring fluidity with virtual machines, databases and professional software. Two M.2 2280 PCIe 4.0 x4 NVMe slots support SSDs of up to 8 TB each, for a total of 16 TB of ultra-fast storage, ideal for critical data and massive projects.

Professional Connectivity and Server-Grade Scalability

Equipped with two high-performance network ports: an ultra-fast 10GbE RJ45 (Realtek RTL8127) and a 2.5GbE RJ45 (Intel I226-V). Wireless connectivity is provided by the Intel BE200 module with Wi-Fi 7 and Bluetooth 5.4. The exceptional expandability includes PCIe 5.0 x16 slots (with bifurcation support), PCIe 4.0 x16 (electrically x4+x4+x4) and PCIe 4.0 x4, allowing the integration of professional cards for specialized applications.

Modern Ports and 8K Multi-Monitor Support

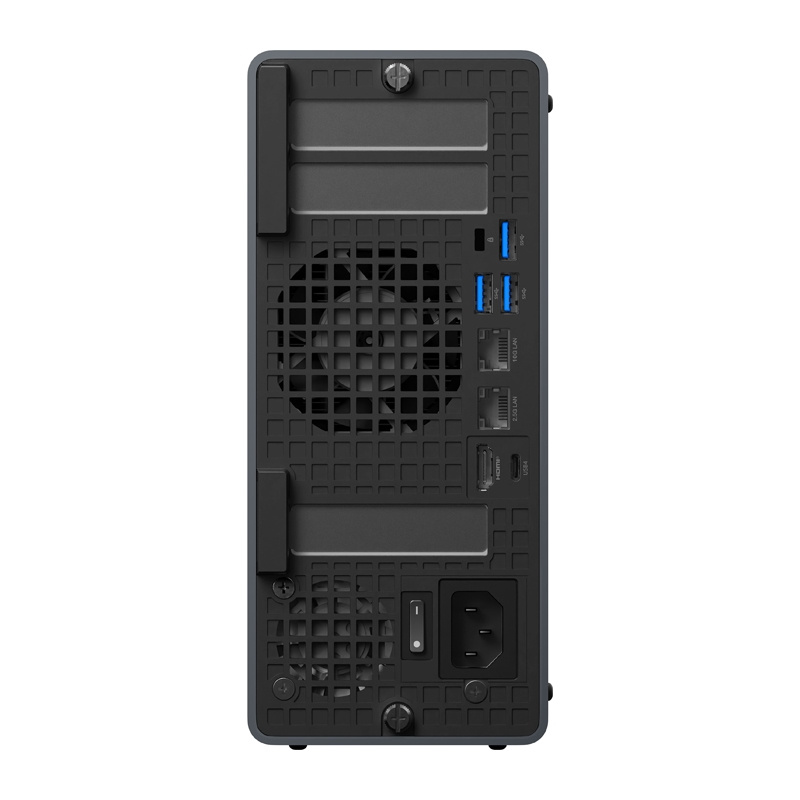

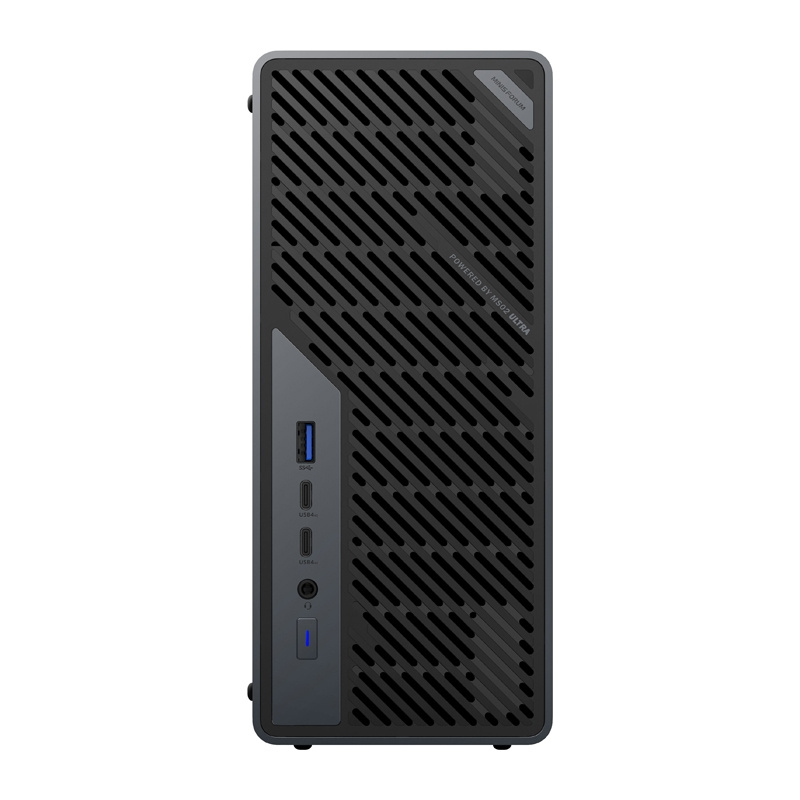

Front panel with two USB4 V2 Type-C ports (80 Gbps, DisplayPort 2.0 Alt Mode, Power Delivery 15 W), a USB 3.2 Gen 2 Type-A and 3.5 mm audio jack. Back panel with a USB4 Type-C (40 Gbps) port, HDMI 2.1 FRL, three USB 3.2 Gen 2 Type-A, OcuLink connector and two LAN ports. Support for up to three 8K resolution displays.

Advanced Cooling and 350W Power Supply

Efficient cooling system with six heat pipe heatsink and phase change material (PCM). Two fans (70×25 mm and 60×20 mm) up to 5,000 RPM guarantee optimal temperatures even under heavy loads. 350W 1U power supply (100-240V AC) provides sufficient power for all components and expansion cards.

Contents of the pack

• Mini PC
• Power cable
• HDMI cable
• Mylar plate
• SSD heatsink
• Removal clip
• User manual
