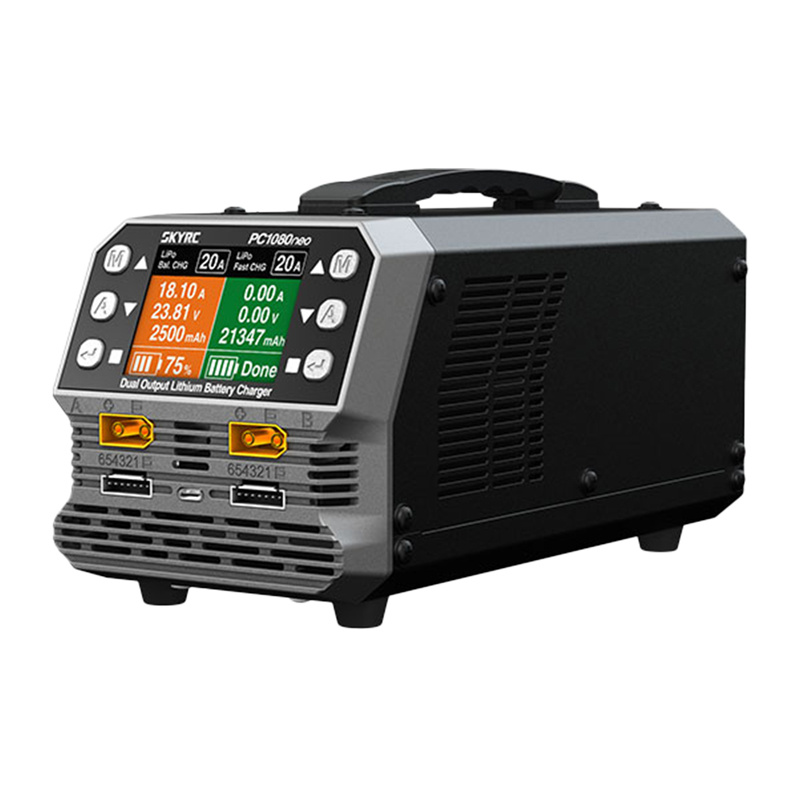

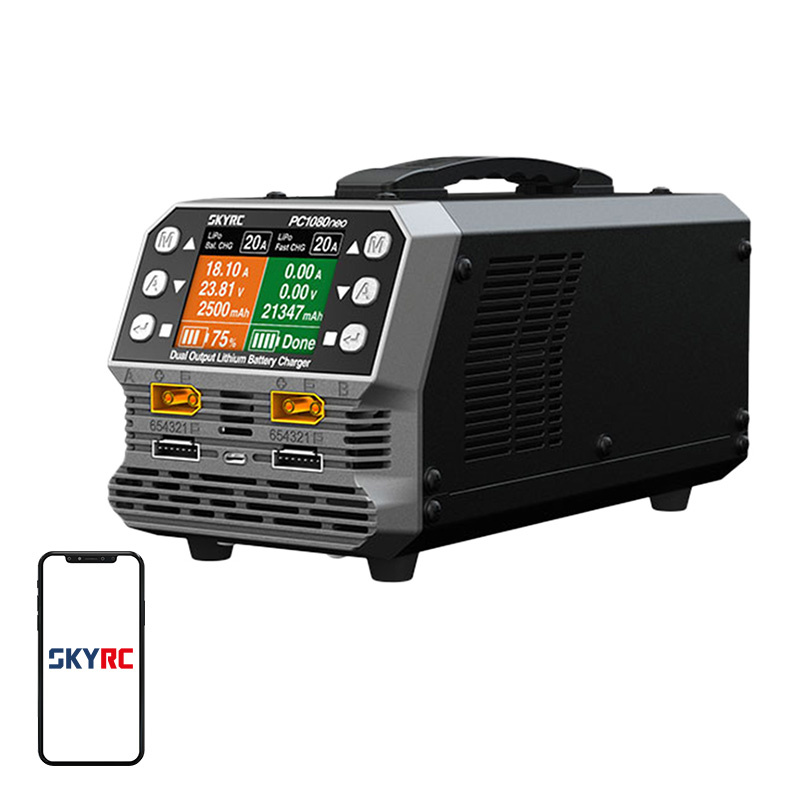

SkyRC PC1080neo Dual Channel LiPo Battery Charger - Optimized for e-commerce

Dual-channel lithium battery charger

The SkyRC PC1080neo is an advanced charger designed for LiPo and LiHV lithium batteries. The device has been designed for users who require high power, precise charging and convenient operation. With two independent channels and a total power of 1080 W, it allows two battery packs to be charged simultaneously, significantly reducing the time needed to prepare the equipment for use.

High power and two independent channels

The charger offers a total output power of up to 1080 W, or 540 W per channel. This allows you to quickly charge even large battery packs used, among other things, in drones and professional equipment. Each channel works independently, so it is possible to charge two batteries with different parameters at the same time. The charging current range from 1 to 20 A allows the process to be adapted to a specific package.

Support for LiPo and LiHV batteries

The PC1080neo model is compatible with up to 6-cell LiPo and LiHV batteries. The charger allows a wide adjustment of the final tension, so that the parameters can be adapted to different types of packages. For LiHV batteries, the voltage can be adjusted from 4.25 V to 4.50 V per cell, allowing for greater capacity while maintaining control over charging safety.

Different operating modes to meet your needs

The charger offers different operating modes to meet your current needs. The fast charge mode reduces the time needed to prepare the battery for use. The balancing mode equalizes the voltage of the individual cells, improving performance and package life. There is also a storage mode, which sets the optimal voltage for long-term battery storage.

Clear display and simple operation

The device is equipped with a 2.8 inch color display with a resolution of 320 × 240 pixels. The screen is angled at 65°, so all information is clearly visible during operation. The interface shows parameters such as voltage, current, capacity and charge level in real time, which makes it easier to control the entire process.

Precise operation thanks to the Cortex-M3 processor

At the heart of the charger is an ARM Cortex-M3 processor, responsible for stability and accuracy of operation. This allows the device to precisely control the charging voltage and current, ensuring a safe and stable process. Cell balancing accuracy reaches up to ±10 mV per cell in balancing mode.

Efficient and stable operation thanks to Active PFC

The use of Active PFC technology increases the energy efficiency of the device. This function stabilizes the input voltage and reduces interference in the electrical network. As a result, the charger achieves a high energy conversion efficiency of about 90%.

Universal power supply

The charger supports a wide input voltage range from 100 to 240 V at 50/60 Hz. This allows it to be used in different countries without the need for additional voltage converters.

Security system

The SkyRC PC1080neo comes with an extensive set of safety features that protect both the charger and the batteries. The Multi Safe Circuit system includes protections against short circuits, reverse polarity, overheating, overvoltage and overload. In addition, a timeout function and automatic shutdown in the event of a malfunction are included.

Software update

The device can be updated via the USB-C port using the Charger Master application available for Windows and macOS. This allows the user to easily update the firmware and improve the compatibility and functionality of the charger.
