THERMAL MASTER DV2 Thermographic Camera

THERMAL MASTER DV2 Thermal Camera

The THERMAL MASTER DV2 is an advanced thermal camera designed for users who require sharp images, a long viewing range and reliability in the field. Combining a sensitive VoX infrared sensor with a resolution of 256 × 192 px with a modern image processor, the device generates an image with a quality equivalent to a resolution of 512 × 384 px, offering significantly greater detail than competing cameras. A sensing range of up to 1,000 meters, two specialized viewing modes, a Full High Definition touchscreen, and long battery life make the DV2 ideal for nature observation, terrain monitoring, inspections, and field operations. Its compact design, 32-gigabyte integrated memory and IP54-rated resistance make it a practical tool ready to use in almost any condition.

Sharp thermal image

The heart of the device is a VoX thermal sensor with a resolution of 256 × 192 px, supported by an advanced image processing chip. Thanks to interpolation technology, the camera generates an image with an effective resolution of 512 × 384 px, which results in better sharpness and a clearer reproduction of details. This makes it possible to detect subtle differences in temperature and to identify observed objects more easily, even from a greater distance. The final result resembles the image quality of professional thermal monoculars.

Detection range up to 1,000 meters

The THERMAL MASTER DV2 is designed for the observation of large areas. The maximum detection range is up to 1,000 meters, allowing effective terrain monitoring both day and night. The camera can detect a person from a distance of up to 300 meters and a vehicle from a distance of up to 400 meters. It's a great solution for those involved in nature observation, land patrolling, wildlife research or infrastructure inspections.

Digital zoom and close observation

The device offers a digital zoom range of 1× to 4×, allowing you to conveniently enlarge the image without having to change position. A minimum focus distance of just 10 centimeters allows for high-precision analysis of small objects. The 18° field of view offers a good balance between a wide perspective and the ability to observe specific targets up close.

Touchscreen for more comfortable operation

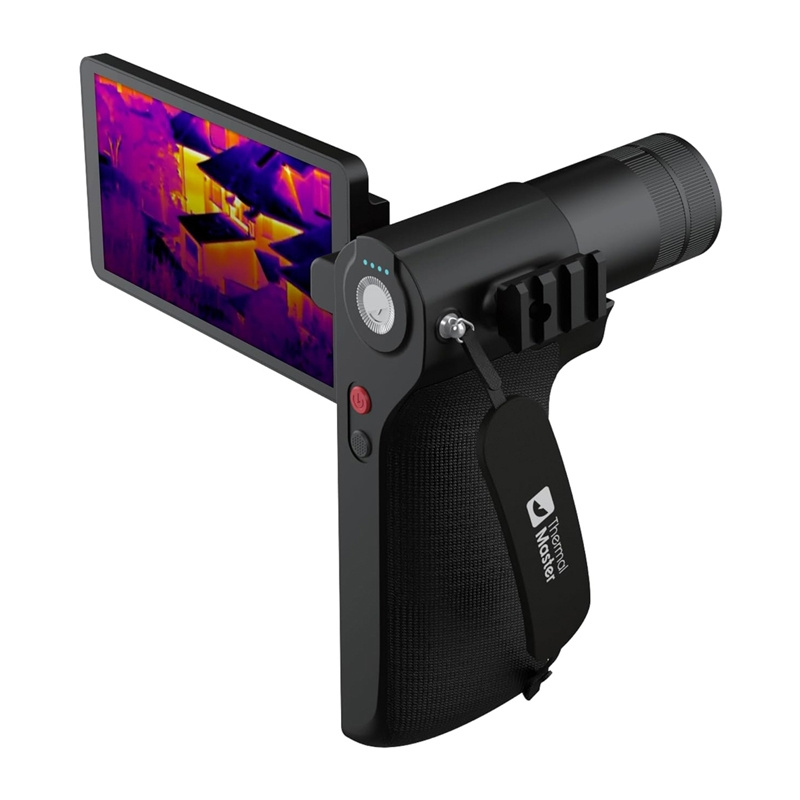

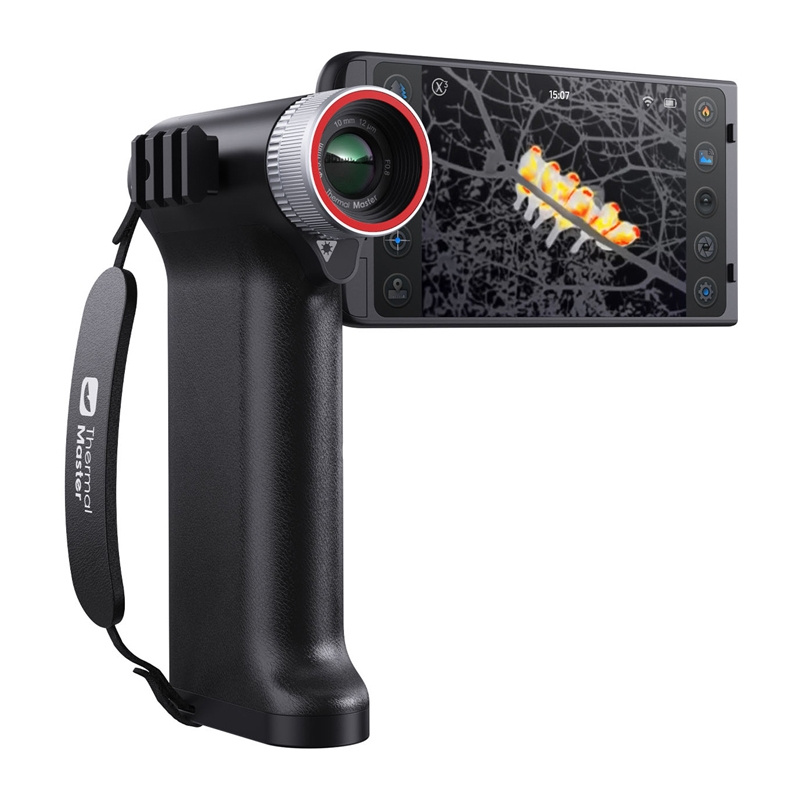

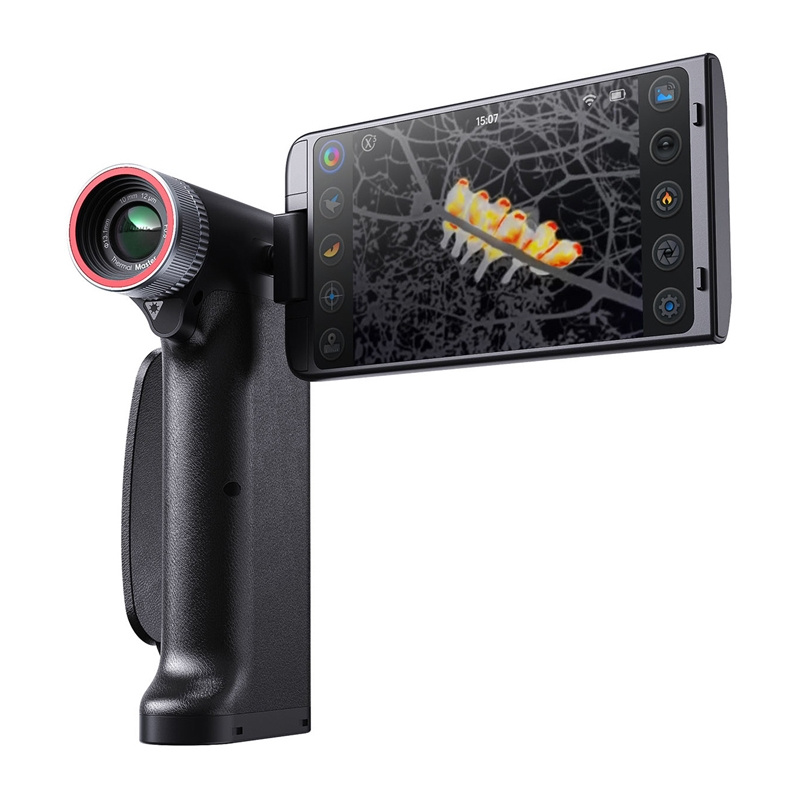

The camera is equipped with a 12.7-centimeter Thin-Film Transistor Full High Definition color screen with a resolution of 1280 × 720 pixels. The foldable display design increases user comfort and helps save energy. Intuitive touchscreen operation makes it easy to change settings, review recordings, and quickly adjust operating parameters in the field.

Two display modes

The THERMAL MASTER DV2 offers two specialized operating modes that improve the effectiveness of observation depending on the environment. The Green Eye High Definition mode provides a detailed image and is perfect in cool, dry weather. The Orange Eye Highlight mode improves thermal contrast, making it easier to detect targets in hot or humid conditions. This solution allows objects to be identified faster and to better interpret the observed terrain.

Large storage capacity and long recording time

The 32 gigabyte built-in memory allows you to record up to 15 hours of video footage. The camera records files in efficient .TS format by default, and after a software update with Wi-Fi support, it is also possible to record in .mp4 format. The 5000 mAh battery ensures long battery life during field use. With the folded screen, the camera can work for about 8 hours, while with the display open, the battery life ranges from 5 to 6 hours. These specifications allow for extended and comfortable observation sessions without the need for frequent refills.

Durable and lightweight design

The IP54 rated housing protects the device from dust and splashes, increasing its reliability under difficult operating conditions. The camera weighs only 512 grams, making it easy to carry in a pocket or backpack. Its compact size and sturdy construction make the THERMAL MASTER DV2 the ideal companion for lengthy field observations and professional inspections.

In the package

• thermal imager
• USB-C cable
• carrying case
• chargers
• user manual
