Revopoint Miraco Pro 3D Scanner - High Precision for 3D Modeling and Printing

Revopoint Miraco Pro 3D Scanner

Immerse yourself in a new era of mobile 3D scanning with Revopoint Miraco Pro, an ultra-lightweight, completely wireless scanner that works continuously for up to two hours on a single charge. The four-camera depth system allows you to seamlessly switch from mapping fine details (0.02 mm) to scanning large objects at high speed (0.2 mm), available in Single Shot and Continuous Shot modes. A powerful 2.8 GHz octa-core processor, 32 GB of RAM and 256 GB of internal memory handle up to 10,000 frames of colorless scans and up to 8,000 color frames, while a 6-inch 2K AMOLED screen with 180° adjustment and advanced post-processing capabilities allow you to work without a computer. Photorealistic colors are guaranteed by a 48 MP RGB camera, while a 9-axis IMU, IP45 certification and Wi-Fi 6 ensure reliability in all conditions. Discover how easy it is to transfer reality to the digital world!

Wireless freedom and compact design

Revopoint Miraco revolutionizes the approach to 3D scanning, combining unparalleled mobility with a lightweight body weighing only 750g. With a built-in 5,000 mAh battery and 50 W fast charging technology, the device works continuously for about two hours and only takes a moment to renew its charge. This means you can completely forget about cables and fixed workstations: scan wherever you want, without compromise.

Endless possibilities for details and scale

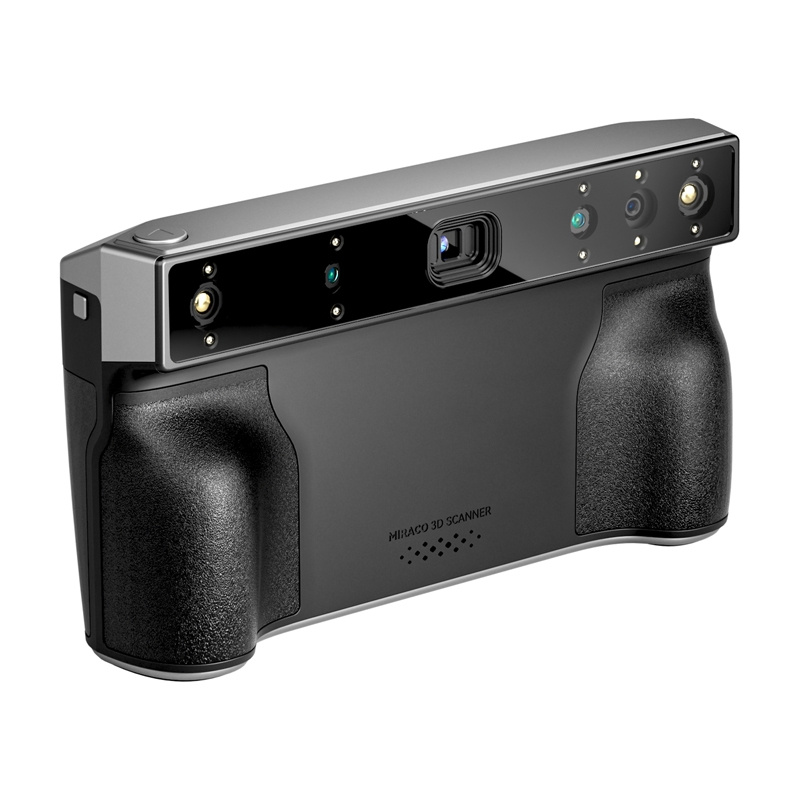

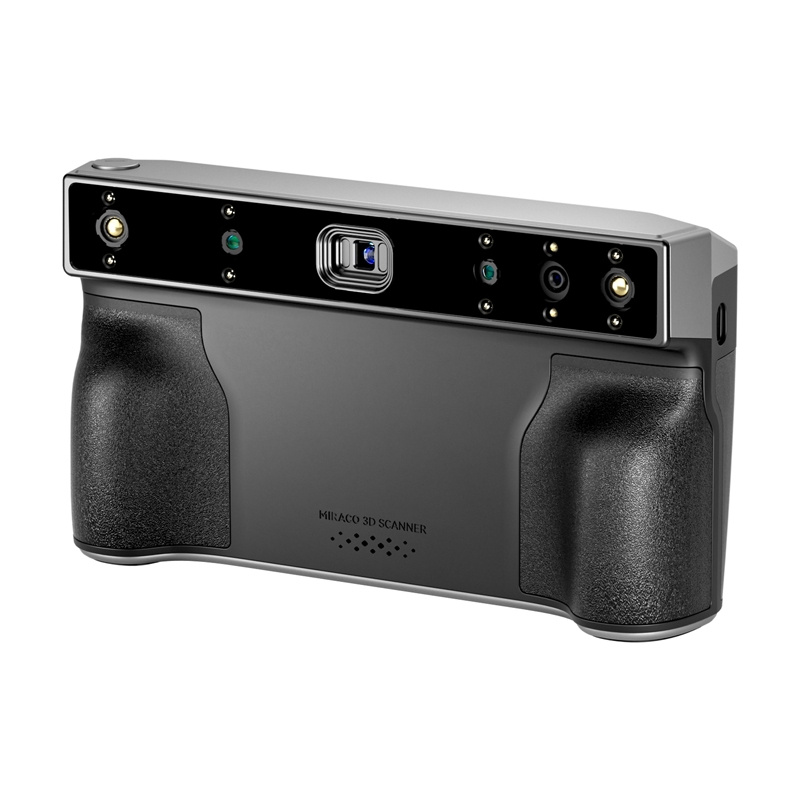

Thanks to its Quad Depth Camera system, Miraco seamlessly transitions from capturing the smallest features (for example, a 33 × 10 × 10 mm screw) to capturing images of large objects (such as a 600 × 138 × 220 mm silencer). This dynamic combination allows the scanner to maintain surgical accuracy of up to 0.02 mm in a single shot, while scanning larger shapes within 0.2 mm, without the need to change equipment or prepare different modes.

Dual-mode image capture

In situations that require detailed mapping of complex surfaces, Single Shot mode eliminates loss of tracking issues and difficulties with contrasting textures. When speed is the priority, Continuous Shot mode allows operation at up to 20 frames per second, significantly accelerating the process of creating 3D models of small and large objects.

Uncompromising independence

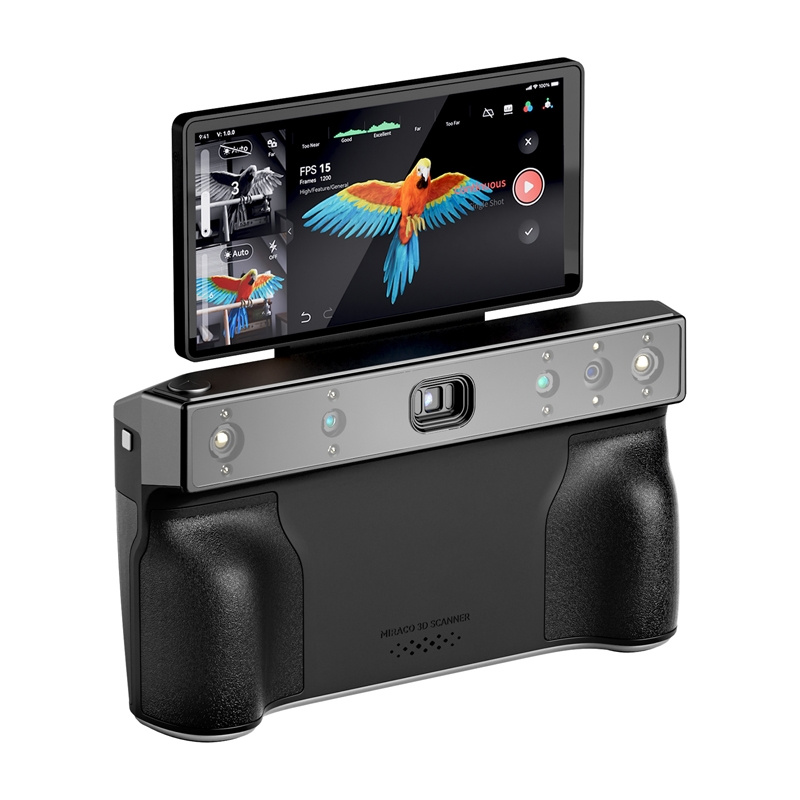

Miraco is equipped with a 2.8 GHz 8-core processor, 32 GB of RAM (random access memory) and a 256 GB hard drive, allowing you to store up to 10,000 grayscale scan frames and up to 8,000 color scan frames. Advanced point cloud processing and model editing capabilities are available on the device: you don't need a computer to view the scan results. Everything is displayed on a 6-inch 2K AMOLED screen (Active-Matrix Organic Light-Emitting Diode, an advanced display technology that uses organic light-emitting diodes), which you can adjust 180°, adapting the frame to any measurement situation.

Photorealistic colors and security features

The 48 MP RGB camera used in the Miraco ensures vivid and accurate color reproduction both in single shots and in continuous mode. In addition, the nine-axis IMU (Inertial Measurement Unit, a module that measures the acceleration and angular velocity of an object in space using accelerometers and gyroscopes) ensures stable and accurate motion tracking, while the IP45 rating allows operation at temperatures between —10 °C and 40 °C, making the scanner ready for use in extreme conditions. The support for Wi-Fi 6 and the facial scanning functionality during selfies expand the device's applications, making it an indispensable tool for engineers, designers and content creators.

Included in the set

• Miraco Pro 3D Scanner
• 4x calibration plates for long range scanning
• calibration plate case
• USB Type-C to HDMI adapter
• tripod
• mini gimbal
• bust (for scan test)
• rotating support cover
• power cable for rotating stand
• storage bag
• calibration plate for close up scanning
• wrist strap
• dual USB Type-C adapter
• USB Type-C to C cable (1.8 m)
• cleaning cloth
• stickers
• user manual
