Revopoint Reference Block Set

Revopoint Reference Block Set: Maximum Accuracy for 3D Scanning

Drastically improve the accuracy and stability of your 3D scans with the Revopoint Reference Block Set. This essential kit provides markers with specific dimensions and geometries, giving your scanner a greater number of reference points for optimal tracking and precise frame alignment. The result? Fewer errors, fewer corrections and a more reliable final result, especially on smooth, symmetrical or undetailed surfaces.

Higher Accuracy Thanks to More Reference Points

Each type of marker in the set has a specific size and point arrangement, allowing the scanner to easily recognize its position in space. Larger elements, such as pyramidal markers (67 × 55 mm), are clearly visible even from greater distances, ideal for large objects. The smaller, spherical (30 mm) and domed (41 × 22 mm) markers allow for detailed and precise capture during close scans. Customize your workflow for each specific project.

Different Types of Markers = More Flexibility

The kit combines point, spatial and linear markers. Spheres and domes allow you to quickly create a grid of reference points around the object, pyramids stabilize tracking in more difficult conditions and marker strips (205 mm long) are useful for elongated elements or that require the conservation of axes. Additional adhesive markers (6 mm/10 mm) allow for denser coverage of spots where even greater accuracy is required.

Magnetic Mounting and Stability

The spherical, domed and pyramidal markers are equipped with magnets with a diameter of 8 mm. This allows quick and safe positioning on metal surfaces without additional supports. A stable mount reduces the risk of markers moving during the operation, directly improving the quality of the scan.

Compatibility and Application

The set is compatible with most Revopoint 3D scanners, including POP, POP 2, POP 3, RANGE, RANGE 2, INSPIRE, MIRACO, MIRACO Pro and the MetroX series (even in laser mode). It works great both for quick panoramic scans and for precision engineering projects where alignment accuracy and tracking stability are critical.

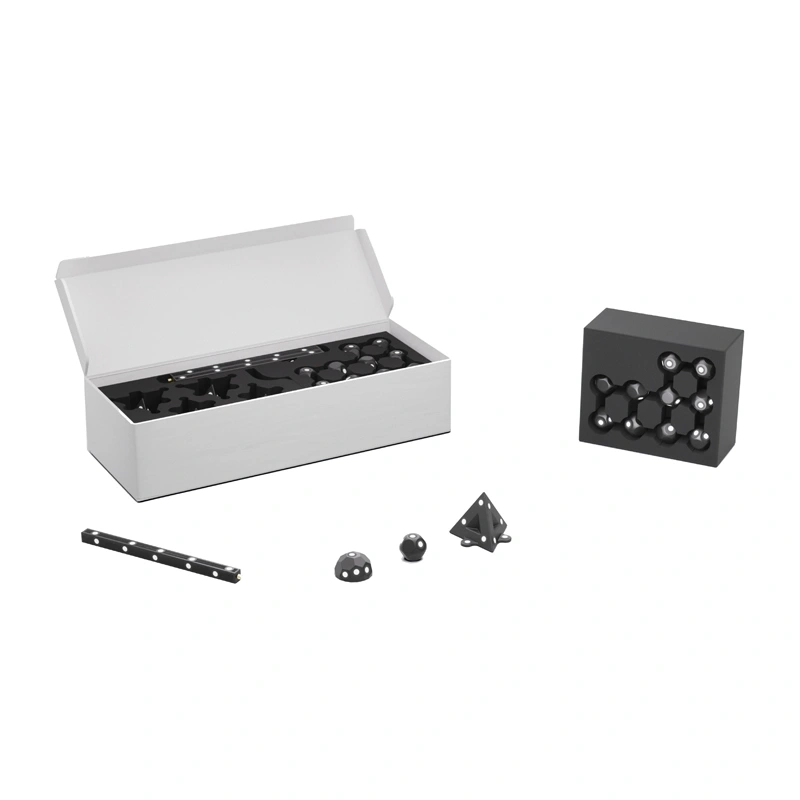

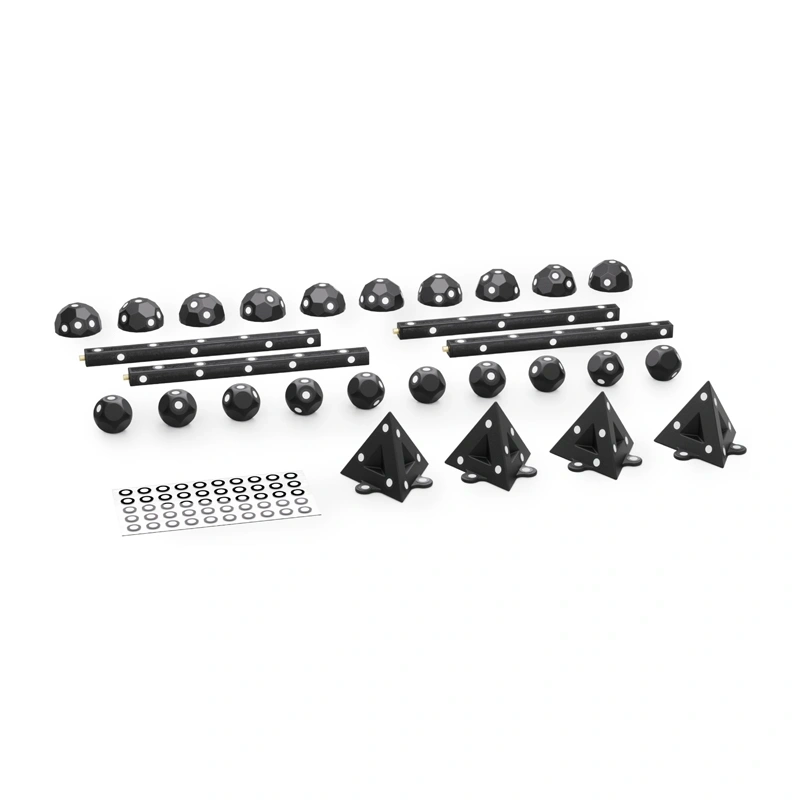

Included in the package

• 10 × spherical marker (magnetic)
• 10 × dome marker (magnetic)
• 4 × pyramidal marker (magnetic)
• 4 × marker strip (205 mm)
• 500 × adhesive marker (6 mm)
