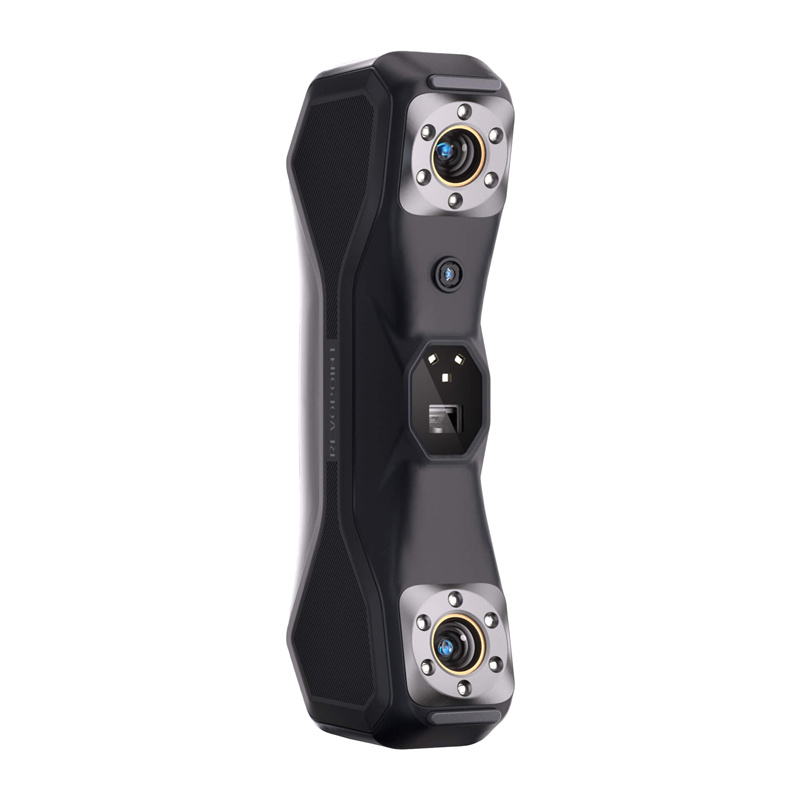

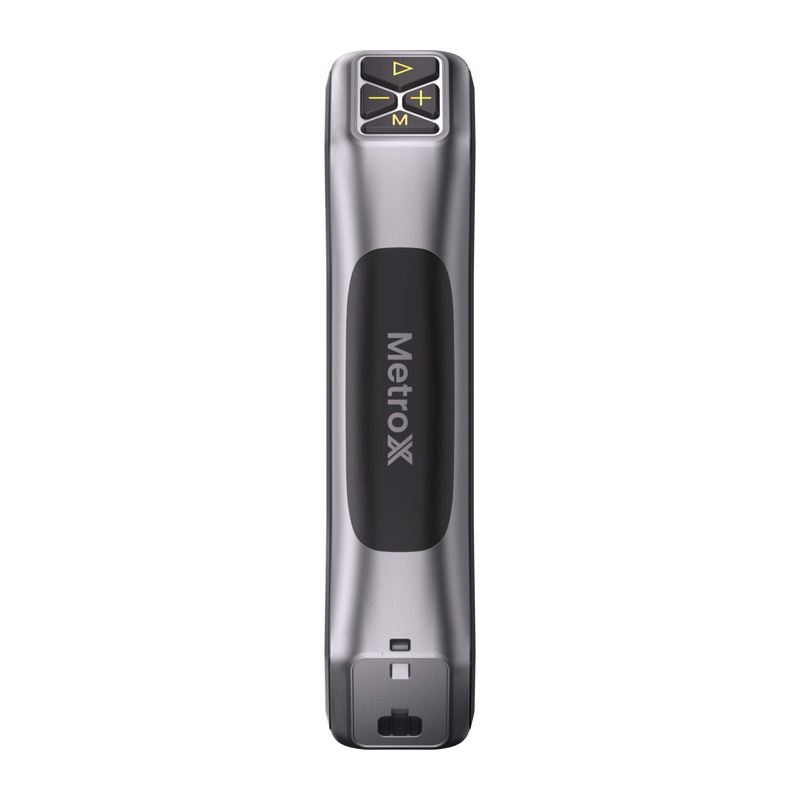

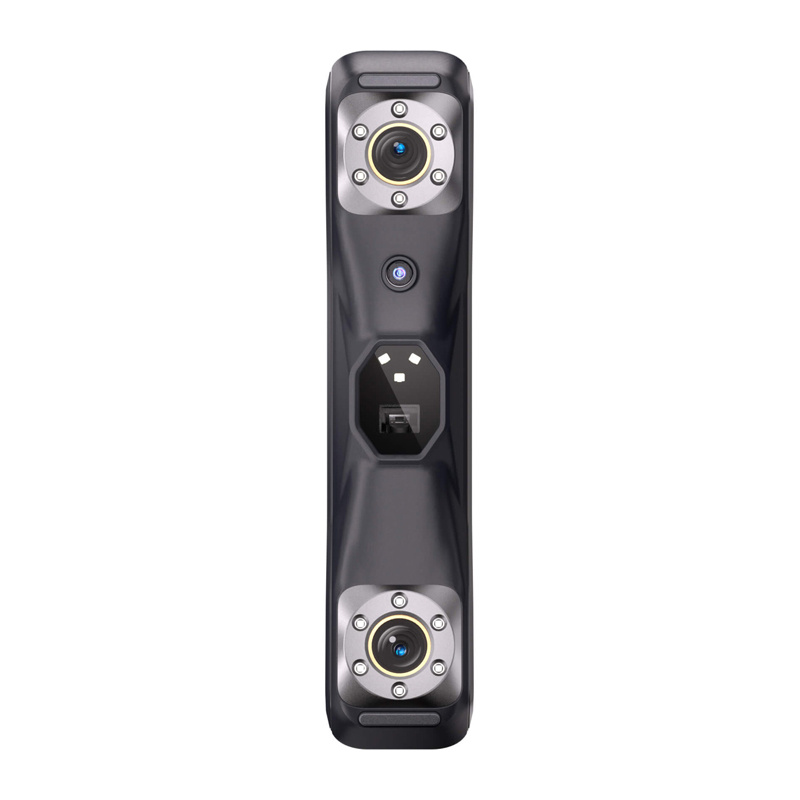

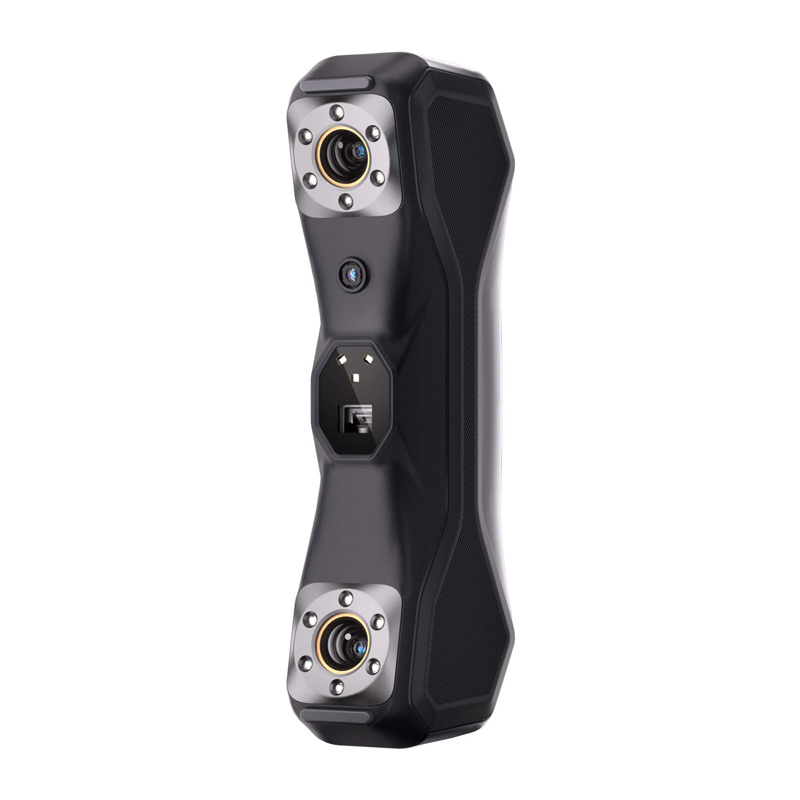

Revopoint MetroX Pro Advanced 3D Scanner

Revopoint MetroX Pro Advanced 3D Scanner

The Revopoint MetroX Pro is an advanced 3D scanner that combines multi-line laser technology and structured light, offering an accuracy of up to 0.01 mm and an accuracy of up to 0.02 mm. The device supports 4 scanning modes and reaches speeds of up to 7,000,000 dots per second in full-field mode and up to 2,000,000 dots per second in laser mode. This allows for quick and accurate mapping of objects ranging from 10 × 10 × 10 mm to 1 × 1 × 1 m, making it a versatile tool for engineering and design applications. The Advanced variant includes an additional set of markers.

Advanced technologies and measurement accuracy

The scanner uses a combination of Multi-line Laser Scan and Full-field Structured Light Scan technologies, allowing the operating mode to be adapted to a specific task and surface type. Users have access to 30 blue cross-line lasers, 15 parallel lasers, and 62 lines of structured light, resulting in highly detailed mapping. This solution, combined with an accuracy of 0.01 mm and an accuracy of 0.02 mm, allows you to capture even the smallest details.

High performance and operational flexibility

With support for GPU-accelerated scanning and a frame rate of up to 60 FPS, the device allows for fast data collection without compromising quality. The scanner offers manual and stationary modes, allowing you to adapt the workflow to the type of object and the scanning conditions. Support for Feature, Marker, and Global Marker tracking methods improves operational stability and makes it easier to scan various surfaces.

Large scan range and ease of use

The device operates at a distance of 200-400 mm, offering a 43 × 33° field of view. At the closest distance, it captures an area of 160 × 70 mm and at the maximum distance, 320 × 215 mm, allowing for convenient scanning of both smaller elements and larger technical components. The compact design, measuring 209 × 88 × 44 mm and weighing 508 g, makes it easy to transport and use in various environments.

Software and system compatibility

The scanner works with the Revo Metro software and allows the streaming of images from a computer to mobile devices thanks to the Revo Mirror function. It is compatible with Windows 10/11 (64-bit) and macOS 11.0 or later. Support for PLY, OBJ, STL, ASC, 3MF, GLTF, and FBX allows for easy further processing of models and preparation for 3D printing.

Stable operation and components

The scanner is equipped with a 2.0 GHz quad-core ARM processor and an integrated depth map processing system, which ensures stable and smooth operation while scanning. This allows the device to efficiently analyze data in real time, reducing delays and optimizing the entire 3D modeling process. The use of 12 blue LEDs further supports the optical system, improving the quality of the acquired data and helping to map details more accurately.

inclusive

• scanners
• tripod
• USB-C to USB-C cable
• feeder
• test scan template
• markers (6 mm) × 500
• swivel support
• wrist strap
• carrying case
• calibration plate
• user manual
• magnetic round markers x10
• x10 magnetic dome markers
• pyramid-shaped magnetic markers x4
• x4 magnetic stripe markers
