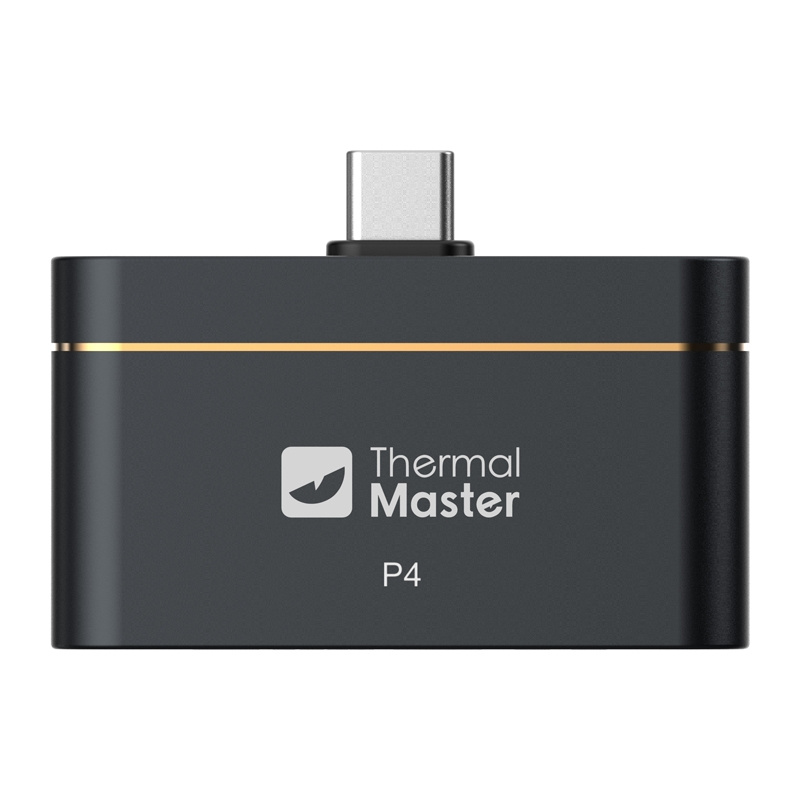

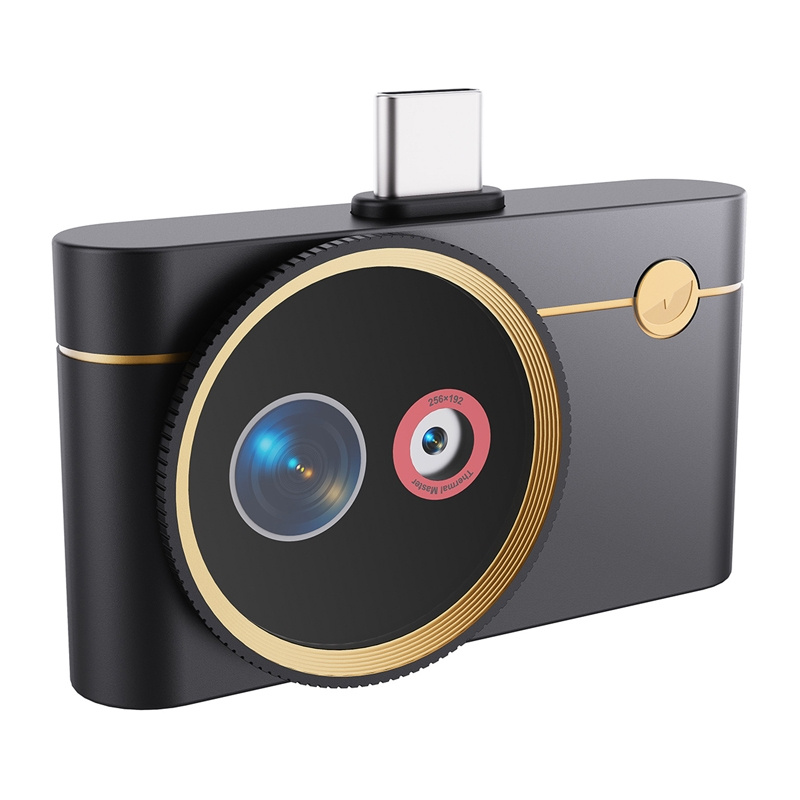

THERMAL MASTER P4 USB-C Mini Thermal Camera

THERMAL MASTER P4 Mini Thermal Camera (USB-C)

The THERMAL MASTER P4 is an advanced USB-C mini thermal camera that combines thermal and visible light imaging in a single compact device weighing only 26.5 g. Thanks to its 256 VoX sensor p205c 192 pixels and X³IR™ technology, the model generates images with a resolution of 512 p205c 384 pixels, offering up to 4 times greater detail and sharper image reproduction. A measurement range from -20 P00b0c to 600 P00b0c, a thermal sensitivity of p226535 mK, a refresh rate of 25 Hz and an accuracy of p00412 P00b0c allow the rapid detection of overheated components, energy losses and faults. The thermal camera has been designed for electricians, HVAC technicians, maintenance technicians and building inspectors who need a mobile but professional diagnostic tool.

Dual Imaging and AI System

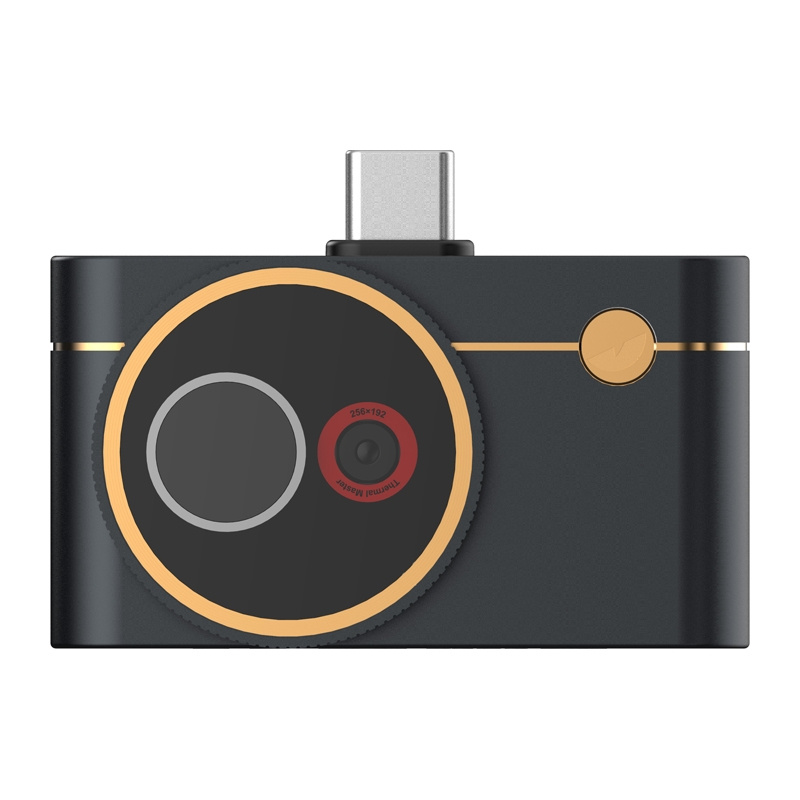

The P4 is equipped with a dual optical system that combines an infrared thermal camera with a visible light camera with a resolution of 1280 p205c 960 pixels. Users can choose from four display modes: Infrared, Visible Light, IR-Fuse™ and Pro-Mix, allowing them to conveniently superimpose the thermal image onto the real appearance of the object being inspected. The patented iEraser technology allows a quick switch between the thermogram and the classic visualization, while the deep learning-based AI (Det) algorithm supports the identification of defects in more complex measurement scenarios. AI Dual-Lens, Razor X™ and X³IR™ technologies help users to more easily detect even small temperature anomalies.

Precise measurements and analysis

The Thermal Master High-Sensitivity Core, together with the IQ+ Precision Temp algorithm, ensures stable and accurate temperature measurements under various operating conditions. Dynamic temperature drift compensation and intelligent room temperature measurement help maintain high reading accuracy, while the ability to correct emissivity, distance, and ambient temperature increases the reliability of the results. The app also offers a table of typical emissivity values for various materials. The thermal camera offers 15 professional analysis modes, allowing simultaneous measurements on 3 points, 3 lines, 3 rectangles and 3 circles, in addition to the automatic tracking of central, maximum and minimum temperatures.

3D viewing and image editing

The P4 model allows you to convert a standard thermogram into a three-dimensional heat map that clearly shows the distribution of hot spots and makes it easier to assess the severity of the problem. The free software offers data analysis, report generation and 2D and 3D editing, useful in creating technical documentation and service reports. The Thermal Master app also allows you to adjust brightness, contrast, scale, mirror the image and rotate the image by 90 p00b0, making it easier to analyze details and work in hard-to-reach areas.

12 color palettes and 15x zoom

The THERMAL MASTER P4 offers 12 color palettes, including White Hot, Black Hot, Iron Red and Red Hot, allowing you to adapt the temperature display to the type of inspection and your personal preferences. The 15x digital zoom allows you to precisely enlarge a selected area without having to physically approach the inspected object, and the isotherm function highlights the specified temperature range with a separate color, accelerating the identification of anomalies. The thermal camera is compatible with devices equipped with a USB-C port and Android 7.0 or later, supporting smartphones, tablets and computers.

Compact design for on-the-go use

With dimensions of 53 p205c 29 p205c 11 mm, the thermal imager fits easily in a pocket or service bag. The fixed focus from 15 cm to infinity allows convenient inspection of both small components and larger installations, while the wide field of view of 56.0 p00b0 p205c 42.2 p00b0 allows you to cover a larger area without the need to reposition the device frequently. The power consumption of 0.58W provides approximately 180 minutes of operation when powered by a smartphone. The P4 model is ideal for industrial inspections, electrical system checks, HVAC diagnostics, building inspections, and water leak detection, helping to quickly detect overheated connections, overloaded components and insulation losses.

Included:

• Infrared thermal camera
• Protective case
• USB-C extension cable (50 cm)
• Quick guide
